Model
|
LSE301
|
JC0605MU
|
|
Working Area
|
500*300mm
|
600*500mm
|
|
Laser Power
|
40W/80W/100W
|
|
Laser Type
|
CO2 Sealed Laser Tube, 10.6¦Ìm
|
|
Cooling Type
|
Water Cooling
|
|
Engraving Speed
|
0-60000mm/min
|
|
Cutting Speed
|
0-40000mm/min
|
|
Laser Output Control
|
(0-100% Set by Software )
|
|
Min. Engraving Size
|
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
|
|
Highest Scanning Precision
|
4000DPI
|
|
Locating Precision
|
¡Ü+0.01mm
|
|
Controlling Software
|
DSP Control System
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
|
Compatible Software
|
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
|
|
Color Separation
|
Yes
|
|

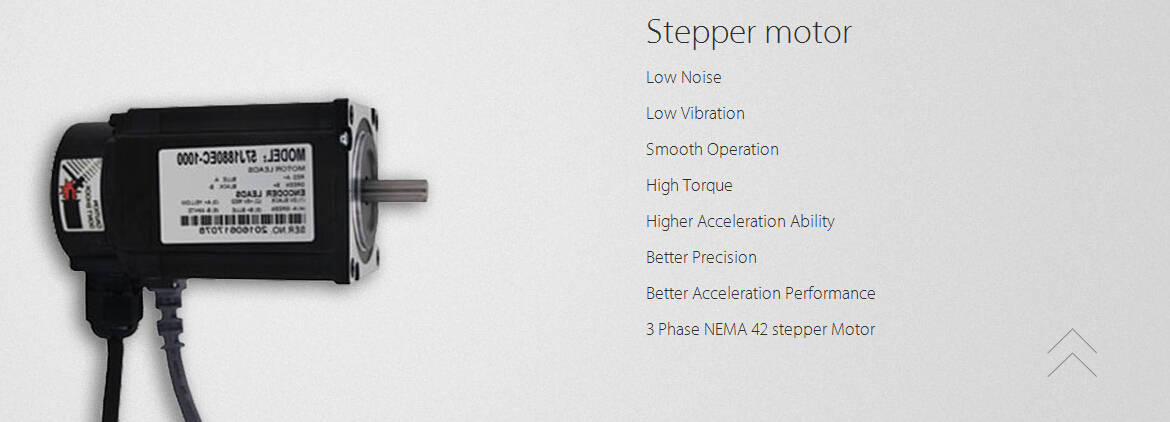

Drive System
|
High-precision 3-phase Stepper Motor
|
|
Auxiliary Equipments
|
Exhaust Fan and Air Exhaust Pipe
|
|
power Supply
|
AC110V/220V+10%,50HZ/60HZ
|
|
Working Environment
|
Temperature:0-45¡æ,Humidity 5-95%(No Condensate Water)
|
|
Optional Spare Parts
|
Honeycomb Worktable, Rotary Device,Auto-focus Device
|
